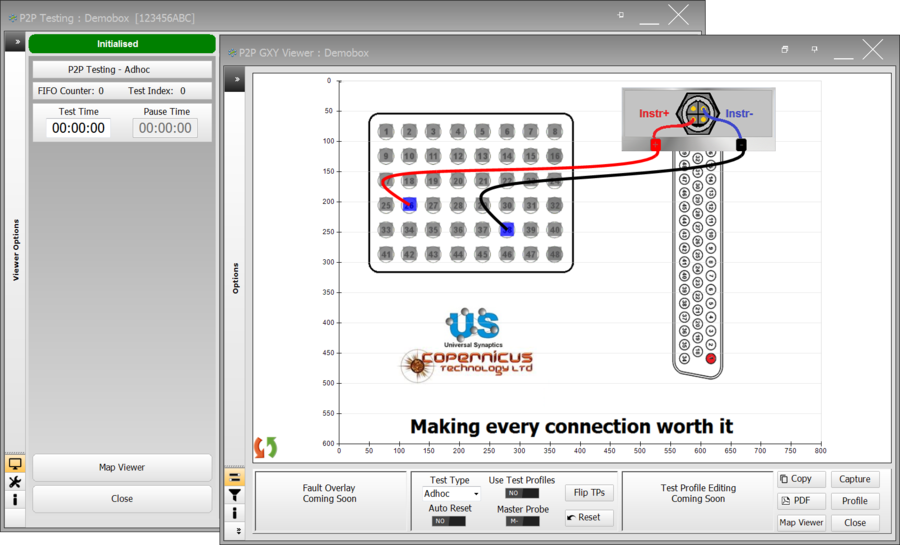

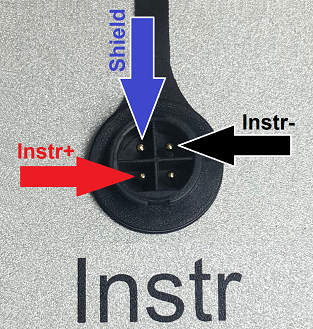

The External Instrumentation configuration operates in a similar way to the Click&Test™ for LogScope™, Diode, SSTDR and Tracker The main difference is there is not an internally connected and controlled instrument. Instead the selected TPs are directly connection to the Instr connector on the VIFD™. Connect a User defined instrument to the appropriate connectors to allow adhoc testing to be carried via the selected TPs.
