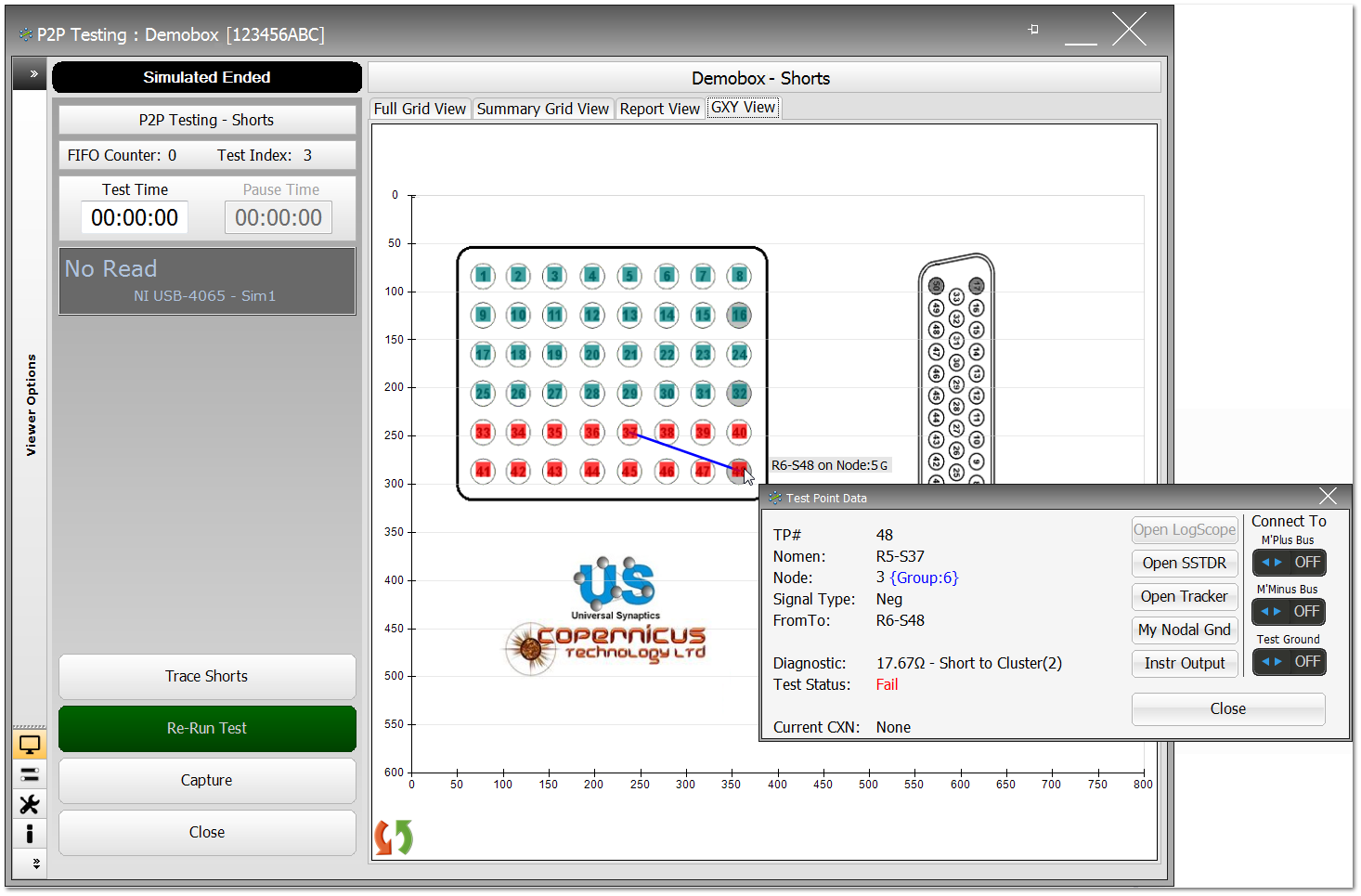

The Popup for Test Point Data has been selected by clicking on the TP object, in this case TP#37 on Node3, and it has failed a shorts test to Cluster(2). The Popup provides additional information for the specific TP selected (on the left), and controls for the TP (on the right). From this Popup the User can open different instrumentation, show the Instr Output, and assign the TP to either the M+, M- or Gnd buses for further testing.
