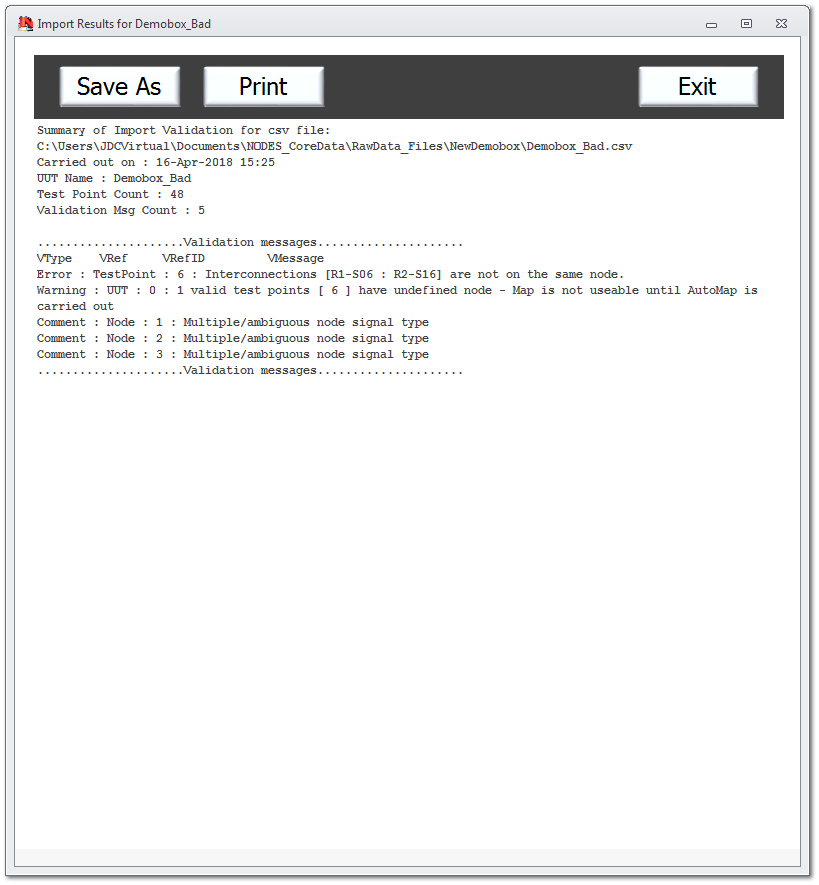

There are a number of different variations of Validation Report. The main one is shown below and it can be accessed in NODES™ during Import/Update a UUT from a csv.
If an import fails a validation rule, then this is displayed in the Validation Viewer/Report. The number provided under the VRefID, is normally associated directly with the VRef (Reference Type) ie if its Node : 3, then this means the issue is with Nodal connection designated as 3. In the example below, the Signal Type is been assigned differently in some or all of the test points within Node 3.
Fatal and Error can not be tolerated, and these will halt any import of a csv. Warnings are associated with possible performance or test restriction issues. Comments are provided to the User for guidance in helping to create a perfect csv import.
