Detailed Pin-Out for ITA Build

Detailed Pin-Out for ITA Build

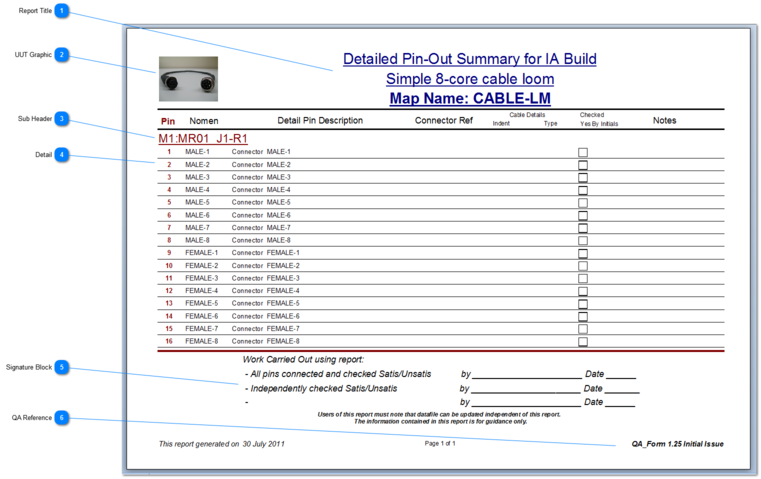

This report is designed to detail the necessary information for building the IA and includes further details of the relevant connector reference and any cable references that might have been entered on the Test Point Add/Edit form.  The actual pin number is listed along with the nomenclature for the test point. A notes field and a check field have been provided for the User, so that each pin can be checked off as the IA is built, thus providing documentation for a quality process.

1
Report Title
1. Report Title
Basic report title for the report including the UUT description and the Map Name.
2
UUT Graphic
2. UUT Graphic
If a UUT graphic has been allocated, then it will be displayed in the top left of the report, otherwise the Company logo will be displayed.
3
Sub Header
3. Sub Header
The report is broken down into J-connectors by row with each row consisting of 16 test points.
4
Detail
4. Detail
Report detail - Pin, Nomen, Detail Pin description, connector reference and cable details for the UUT selected.
5
Signature Block
5. Signature Block
Signature block for the work carried out.
6
QA Reference
6. QA Reference
If this form is going to be part of a company process, then for QA purposes it should be a registered form.  Therefore, the designated form reference can be entered on the Company Details and Preferences form.
