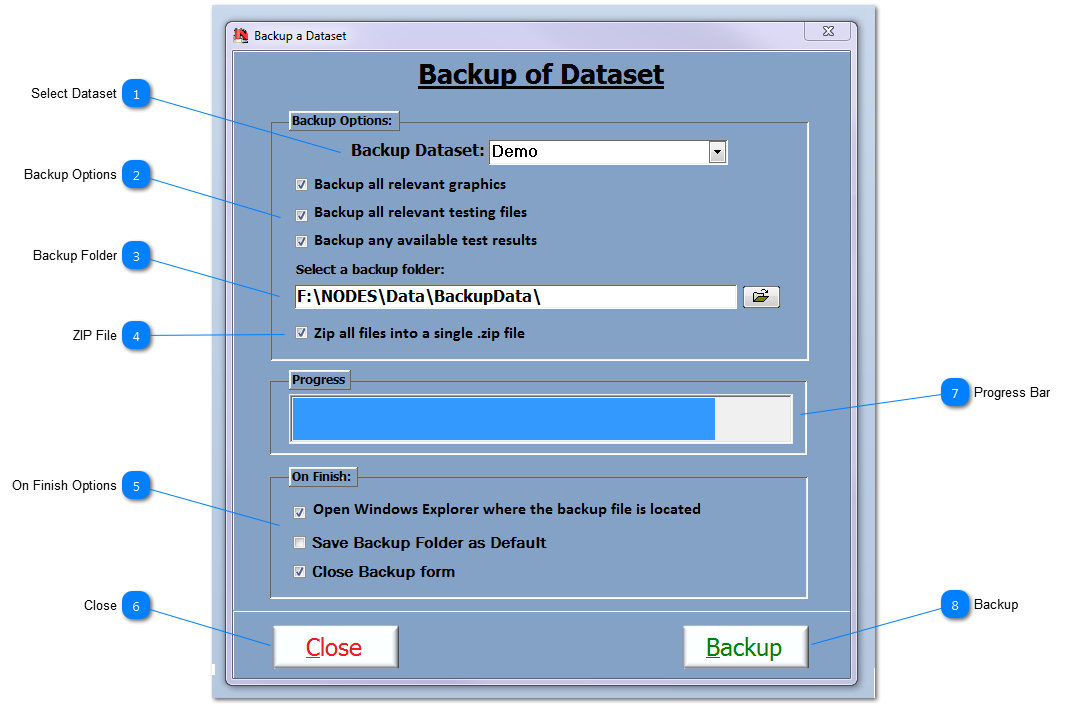

Backup Dataset

Backup Dataset

1
Select Dataset
1. Select Dataset
Use the dropdown to select the required Dataset to backup.
2
Backup Options
2. Backup Options
Check the options required for backup.  Each option selected will be backed up from the relevant folders from within the NODES™ folder structure.
3
Backup Folder
3. Backup Folder
Double-click or click the Folder button to open the Windows Select Dialog.  From the dialog, select a suitable folder location for the backup file.

It is highly recommended that the folder location is NOT on the same physical drive as NODES™, and the folder location should be a USB pen drive or removable storage media device that can be stored in a separate location to the CC once the backup has taken place.
4
ZIP File
4. ZIP File
Check this option to create the backup as a .zip file.
5
On Finish Options
5. On Finish Options
Check each of the options to:
  • Open Windows Explorer to the folder where the backup was created.
  • Save the folder used to carry out a backup as the default.
  • Close the Backup form or Uncheck this option to leave the Backup form open for further backups to be carried out.
6
Close
6. Close
Click to Close the Dataset Backup form
7
Progress Bar
7. Progress Bar
When a Dataset is being backed up, the Progress Bar will show the percentage undertake at any one time.
8
Backup
8. Backup
Once all the relevant backup options have been set and/or selected, press the Backup button to perform the backup.
