Virginia Panel Pin-Out

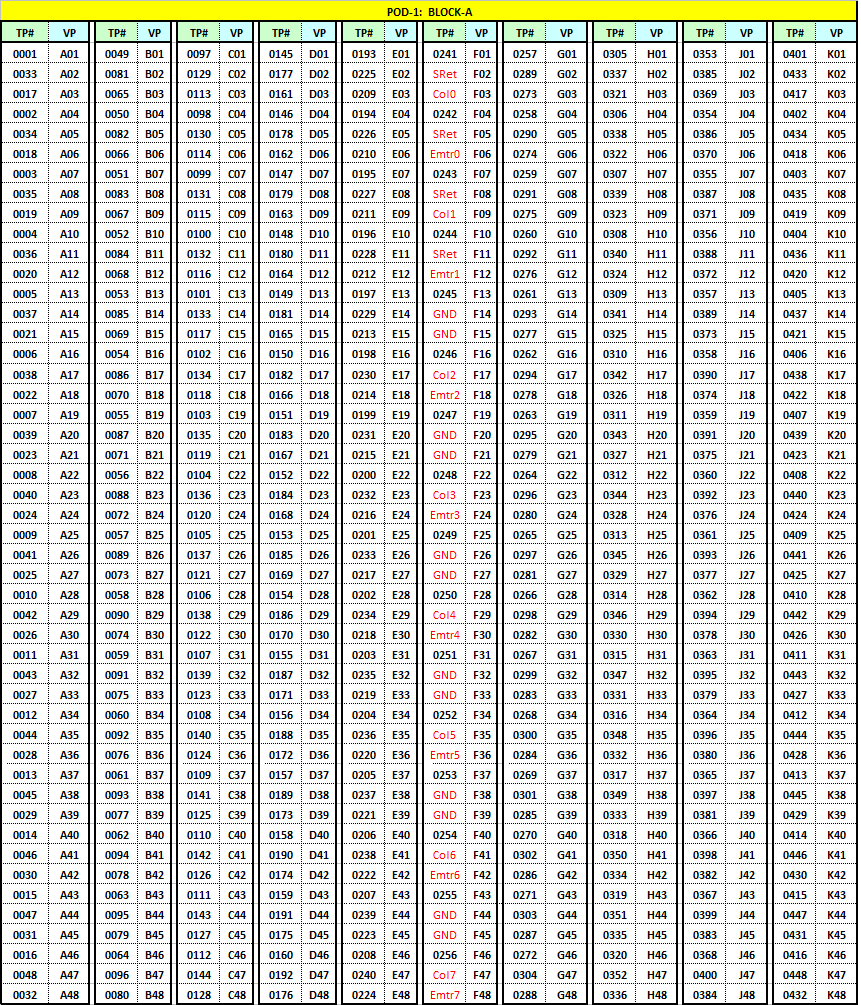

The Block pins as viewed when looking directly at the male ITA pins will be a mirror of the pin-out diagram and when viewed from the rear will be as shown in the diagram.
