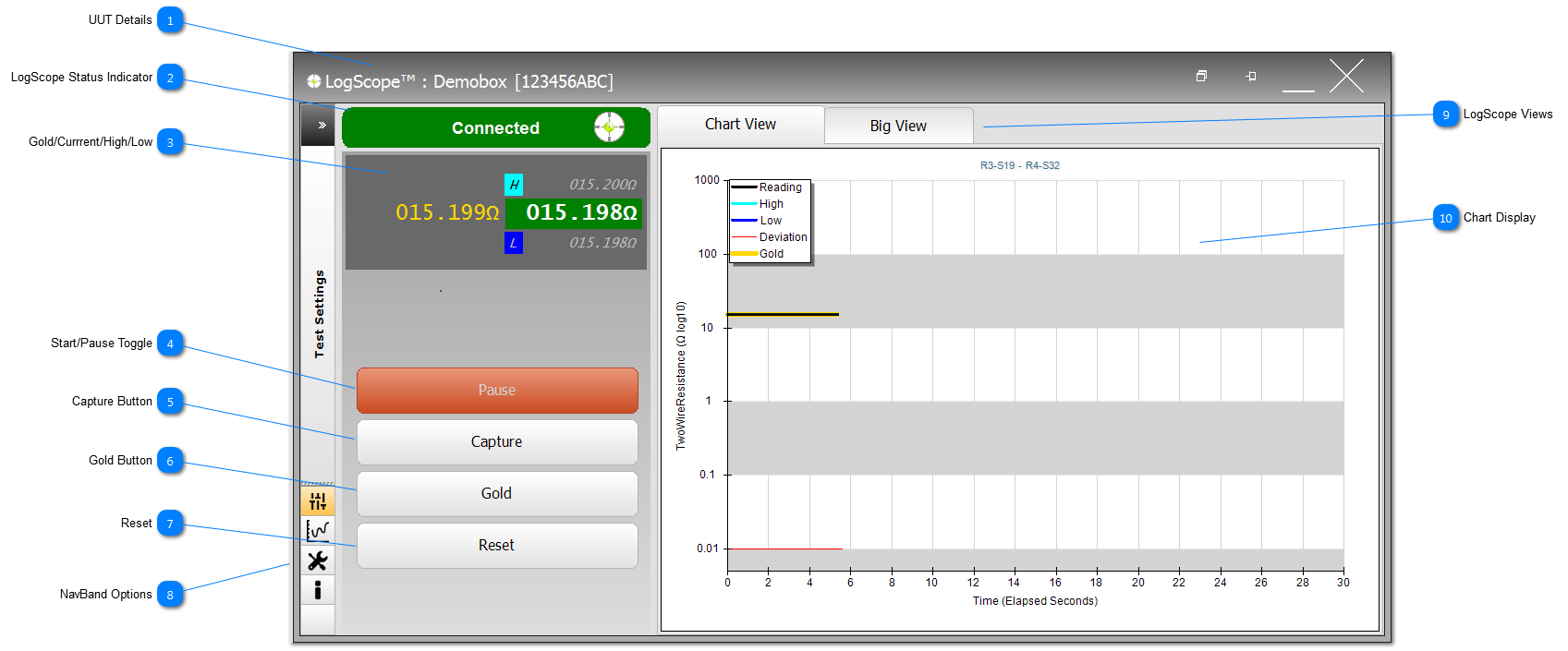

LogScope can be used as a stand-alone application, with the settings being supplied by the logscope.ini file. If LogScope is being used as part of the NODES™ software, then it is setup and controlled by NODES™. Status of LogScope is shown by the status bar which is currently showing that LogScope is connected and the small icon shows that the application is active.
Other states include: Initialising..., Not Connected and Simulated.
Click Gold to declare the currently readings as the Gold.
If there is no Gold, then the button will show Profile. Use the Profile button to create a new Test Profile using the current test settings, the TPs connected and the current values as the new Gold.
This button will not become active until after approx 5secs of readings.
Clear the current status and set the current readings background to green, set the High and Low values to the next current reading, and clear all data points on the Chart.
The LogScope application has a number of NavBands available to the User (the current view shows the About NavBand selected). See LogScope™ NavBandsfor more details.
LogScope is provided with 2 main views. The Chart View (as shown) and Big View which is designed to provide users an eye-catching view that can be seen from a distance ie across a workshop or on the other side of an environmental chamber.
The Chart is an endless chart that self-scales based on time. The legend explains the plotted lines, and these lines can be turned on/off in the LogScope™ NavBands.
Zooming in/out of the Chart
Users are able to zoom into the Chart by clicking a start point on the chart and dragging zoom-tool to the right to the end point and release. Zoom out by click on a point on the chart and dragging the zoom-tool to the left. Completely zoom out by double-clicking on the Chart or clicking on the red-dot on the x-axis.
Use the arrows or the slider to navigate backward and forwards through the Chart's data points.
shows that the application is active.
