The baseline Diode Testing functions are outlined in the Click&Test™ topic.

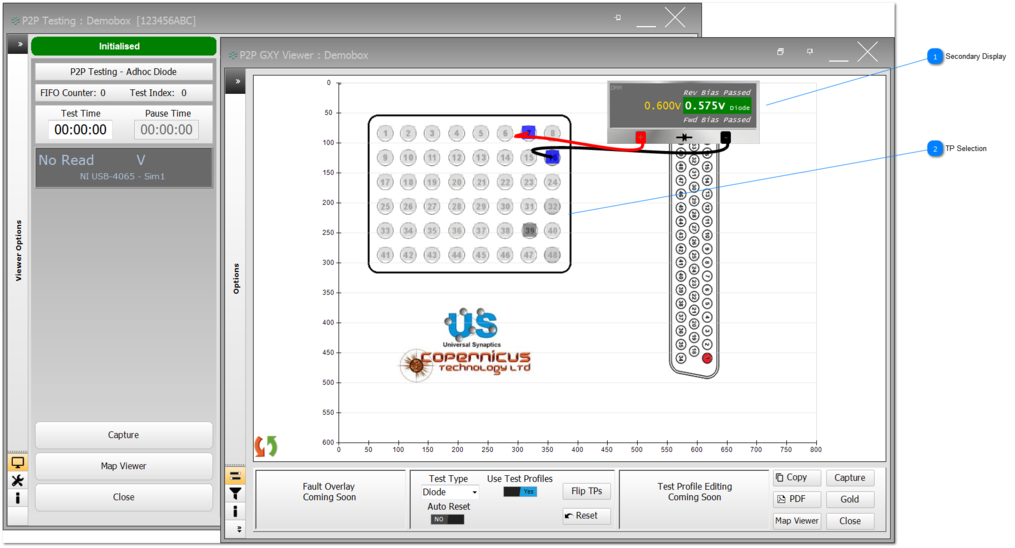

For Diode Testing, the Secondary Display shows a DMM readout for a DMM in Volt Diode mode; note that there is no specific testing application for this testing mode.
Once the connections are made (as shown), a Volt Diode reading in both the Forward and Reverse Bias are taken.
The reading is shown on the Secondary Display, and if both Forward and Reverse bias readings are within the tolerance set in the Testing Profile, then the background will be shown as green, and it will be shown as red if one or both have failed.
The Gold value detailed in the Test Profile is shown in yellow. If there is no Gold, '-.---' will be displayed.
TP Selection is described in Click&Test™. This example shows that the Use Test Profiles in set to Yes, and there are only two TPs that have predefined Test Profiles; one of these is TP39 which is shown in dim Grey and is a selectable TP.
To make all TPs selectable, set Use Test Profiles to No.
