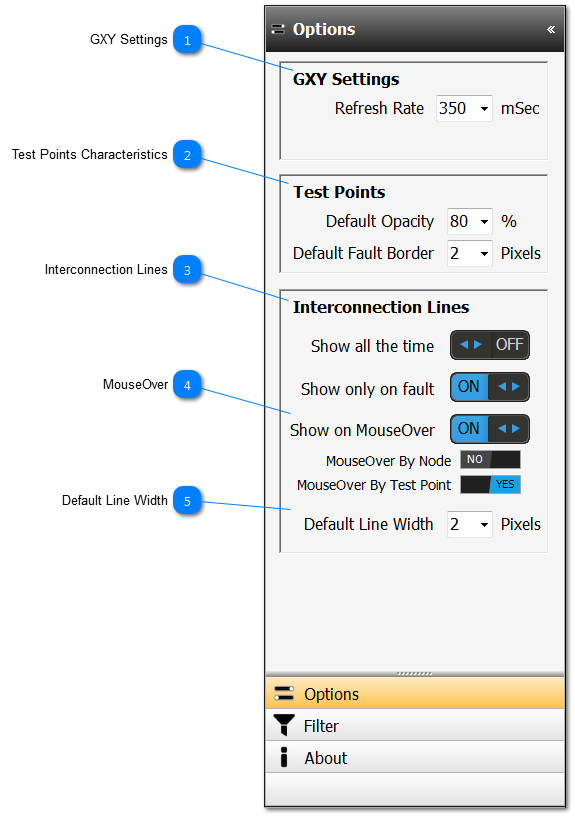

Options Band

The GXY and its associated TPs is a complex object.  A Refresh Rate for the GXY graphic is set as a default of 350milliseconds to ensure that the CPU is not overworked; this can be altered if performance of the application needs to be optimised; for larger UUT, it may be this setting could be set higher at perhaps 600-700milliseconds.

Set the level of Opacity and the Border size for the Test Points.  Test Point objects are drawn over the top of the GXY graphic.  This facility allows detail on the GXY graphic under the Test Points to be visible to the User.

The connection paths between the Test Point are shown using interconnection lines.  The line colour is defined at Definitions and Categories of Test Points.

These lines can be shown all the time or shown when a fault occurs during a test.  The default for Show all the time is Off because sometime on complex UUT, the interconnection lines can be confusing.

Configure the options in this section to show the Interconnection Lines when the User mouse-over a specific Test Point.

Set the default line width for the Interconnection Lines.
