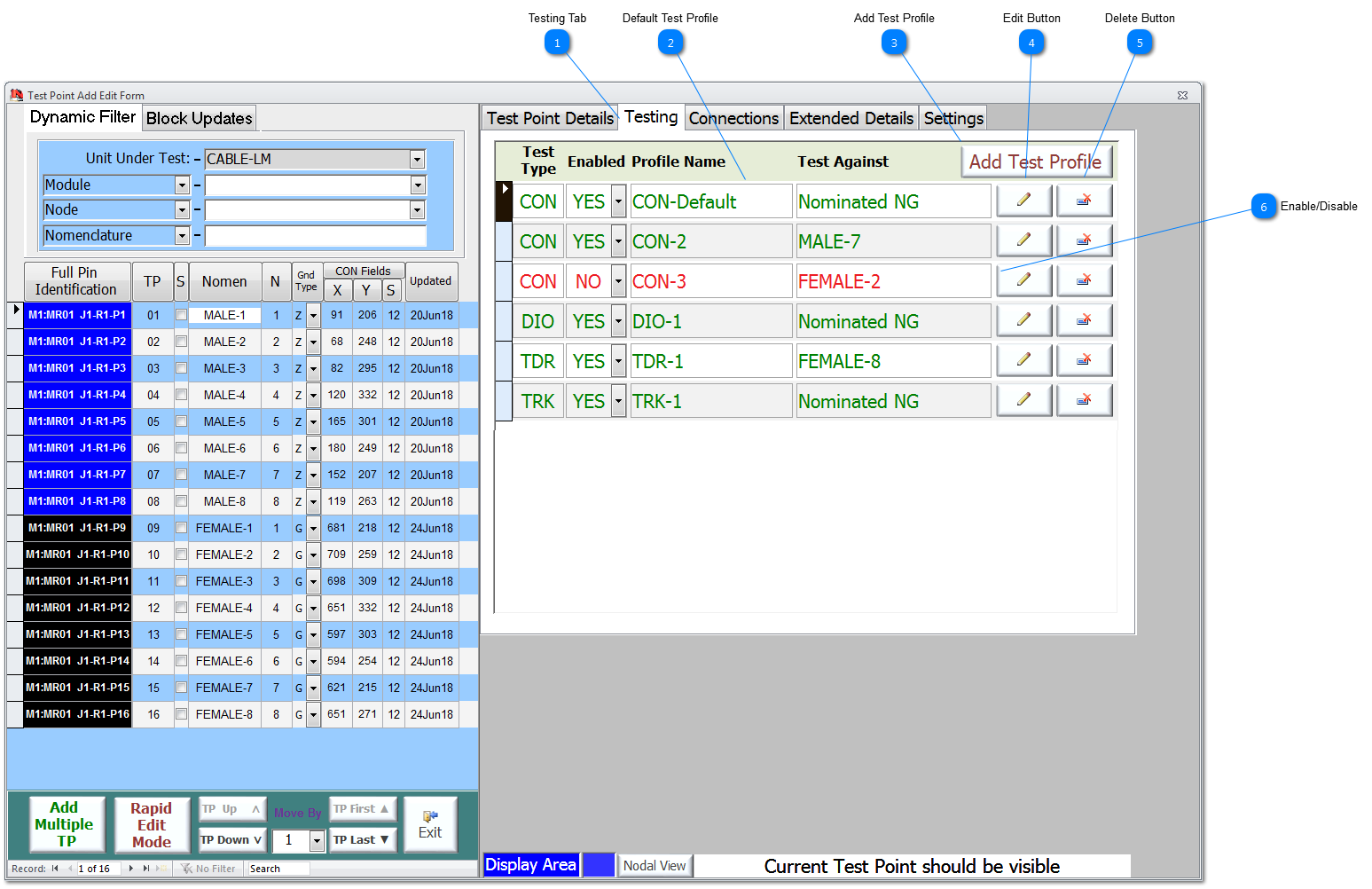

Test Profiles


Test Profiles
1
Testing Tab
1. Testing Tab
Each TP can have multiple Test Profiles.  Test Profiles can be added/editted via the Testing Tab on the Test Point Add/Edit form.  For more details see Test Profiles.
2
Default Test Profile
2. Default Test Profile
Each TP has at least one test profile as a default profile that cannot be deleted or disabled by the User; this profile is called CON-Default and it is used in the baseline Continuity test.
If the TP is a Nodal Ground, then the CON-Default is automatically disabled.
3
Add Test Profile
3. Add Test Profile
To add a new Test Profile for this TP, click on the Add Test Profile button.
4
Edit Button
4. Edit Button
To Edit a Test Profile, click on the edit button (shown as a pencil) adjacent to the relevant Test Profile.
5
Delete Button
5. Delete Button
To Delete a Test Profile, click on the delete button (shown as a record delete symbol) adjacent to the relevant Test Profile.
6
Enable/Disable
6. Enable/Disable
A Test Profile can be Enabled or Disabled from this summary form by using the dropdown and selecting Yes/No accordingly.
If the Test Profile is enabled then is show in green text and if disabled then it is shown in red text.
