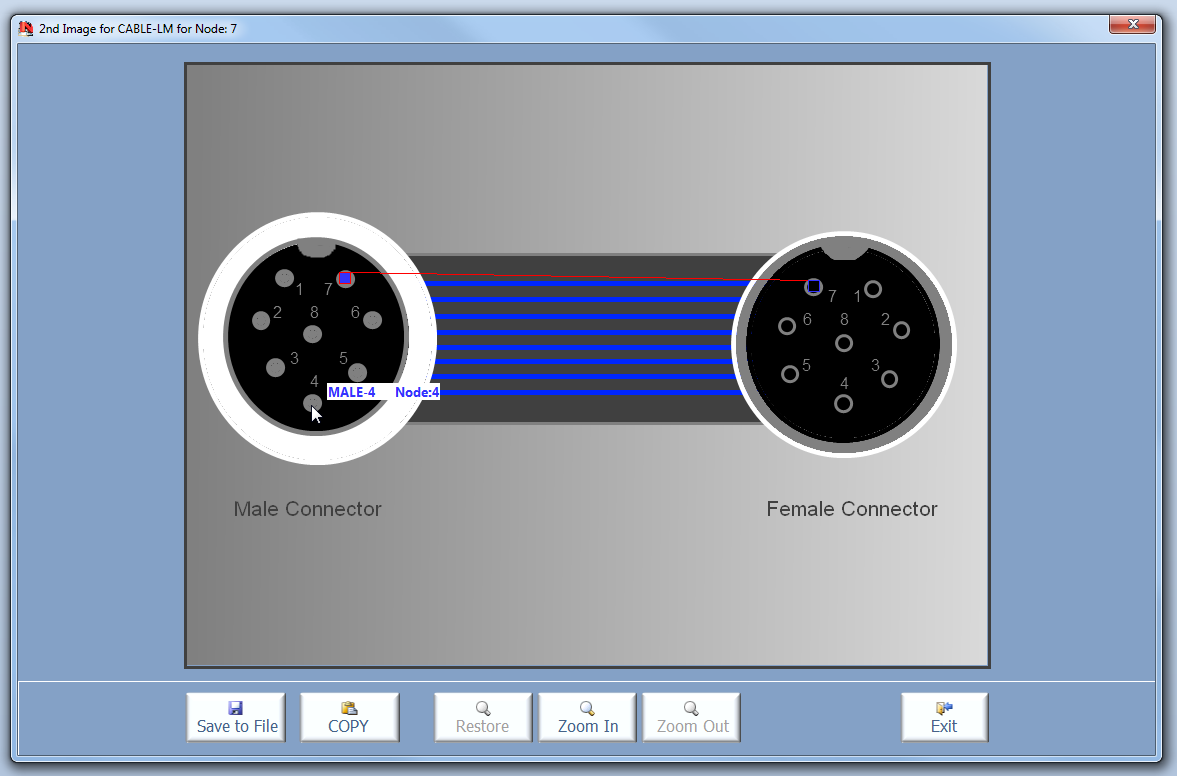

The Nodal View, or sometime referred to as the 2nd Image, allows the User the see where all the TPs are on a particular node or for the whole UUT, and how they are connected. The Nodal View will be opened and made as large as possible for the screen resolutions available. If this image has been scaled, then the scaling will be shown in the form's title bar. The Nodal View can be dragged and dropped on to any of the available monitors. The example below shows the Nodal View for the CABLE-LM for Node 7, and the Test Point Data shown for MALE-5 Node:4 since the mouse is currently positioned over this particular TP.
For the current version of NODES™, the Nodal View is limited to GXY graphic size up to 2100x1500. Support for Nodal View up to 4k is due in Spring 2019.
For the current version of NODES™, the Nodal View is limited to GXY graphic size up to 2100x1500. Support for Nodal View up to 4k is due in Spring 2019.
