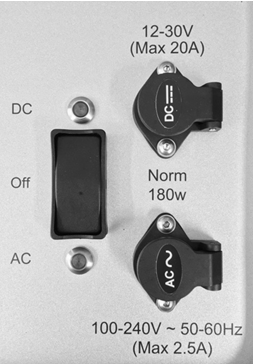

Ø Connect power cable to a compatible power supply - the corresponding AC or DC power supply LED will illuminate next to the large rocker switch, as shown below.
Ø Select the large rocker switch to AC or DC, as appropriate.

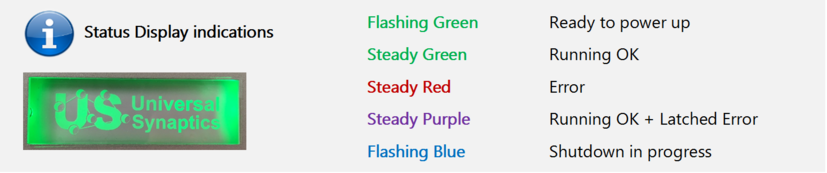

Ø Wait until the Status Display illuminates Flashing Green (see panel below).
Ø Press the Power button marked to the right of the main touch-screen.
Ø Wait for Windows to boot and SPIDER™ Monitor to start and then minimise. Once the System's preconfigured start-up checks are completed, the Status Display will show 'Steady Green'
Ø Double-click on the NODES™ Icon takes you to the NODES™ Options menu. Follow the link to 'How To Test' to learn more about testing and the Main Testing Menu options in more detail.
Ø If NODES™ does not start or it causes an error, double-click the NODES™ Recovery icon
to the right of the main touch-screen.
takes you to the
