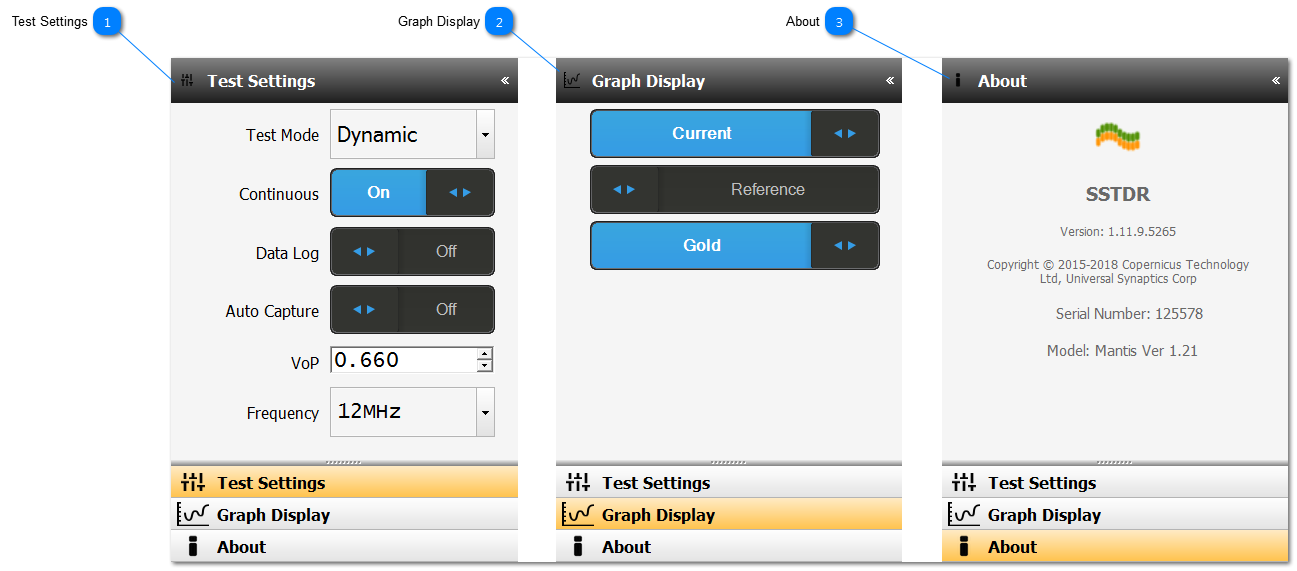

The baseline settings for SSTDR operation. See Test Profile - SSTDR for more details on each of the settings. The SSTDR test settings can be changed during testing at anytime.
In addition to these setting, there is the ability to set the SSTDR to
Continuous - On/Off - set to On the SSTDR take readings all the time the application is active.
Data Log - Auto/Off - set to Auto, readings will be logged on change.
Auto Capture - On/Off - set to On, any change that changes the state of the circuit ie Open/Close or a 10% change in the measured distance to state, will automatically be captured
Any Captured event, will be recorded to csv and also to pdf, which will include a screenshot of the graphical output.
Use the sliders to switch on/off each of the traces for the SSTDR.
Current - is shown in Black and is the currently measurements.
Reference - is shown in Grey and is the starting reference measured by the SSTDR.
Gold - is shown in Gold and is the last saved Gold Trace for the Test Profile being used (if no defined Test Profile is being used, then there will be no Gold).
