External Instrumentation

The External Instrumentation configuration operates in a similar way to the Click&Test™ for LogScope™, Diode, SSTDR and Tracker  The main difference is there is not an internally connected and controlled instrument.  Instead the selected TPs are directly connection to the Instr connector on the VIFD™.  Connect a User defined instrument to the appropriate connectors to allow adhoc testing to be carried via the selected TPs.

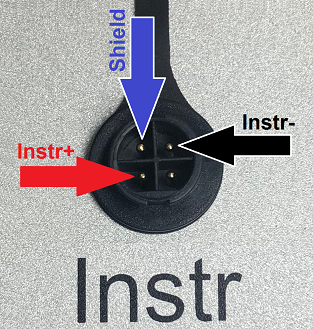

The picture above depicts the connections to the
external Instrument on the VIFD™.
