Test Settings Band

The Test Settings provide the User with the ability to change the:
Ø     Drive which is the stimulating voltage for the Neural Network (voltage levels are 0-3.2volts over a 3kW resistor with a maximum of 1.1mA output).
Ø     Sensitivity which is the level of detected change in the Neural Network for an event to be detected and isolated.

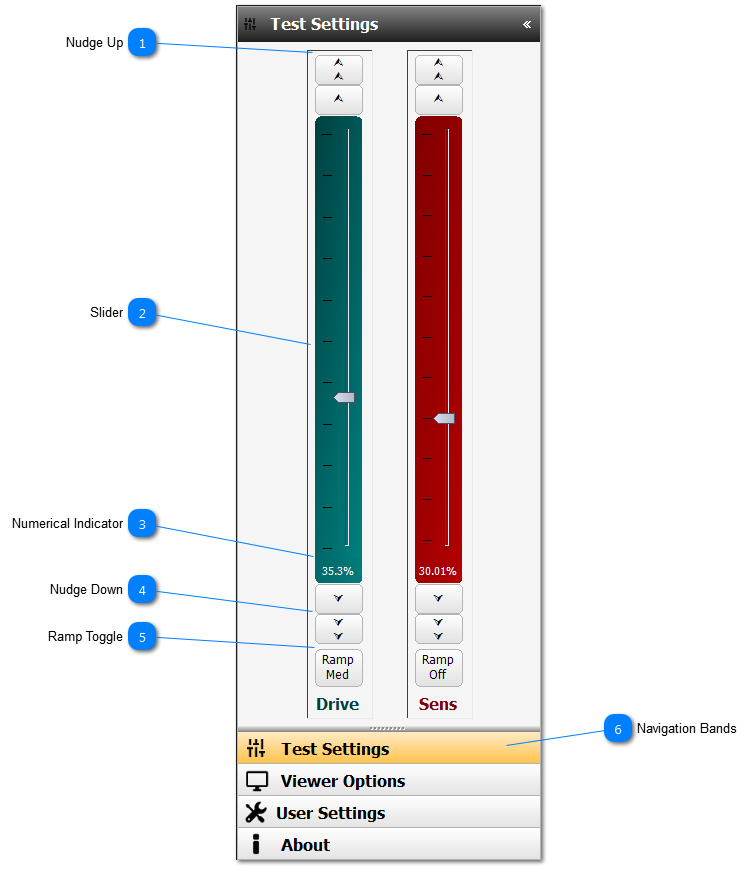

Test Settings Band
1
Nudge Up
1. Nudge Up
The Nudge Up controls allow the User to nudge up in large or small steps the Drive or Sensitivity.  As the slider gets closer to the top of the scale, the large and small nudge divisions get progressively smaller.
2
Slider
2. Slider
The slider control allows the User to change the Drive and Sensitivity as required.  The slider arrow can be dragged to the new location, or the the mouse can be clicked on any part of the slider scale.
3
Numerical Indicator
3. Numerical Indicator
A numerical indicator shows the value of the settings of the control.
Double-click the numerical display area will toggle the indicator between percentage and absolute value
For Drive the absolute value will in volts (0.0v - 3.2v), and for Sensitivity it is 12bit resolution value (0-4095).
4
Nudge Down
4. Nudge Down
The Nudge Down controls allow the User to nudge down in large or small steps the Drive or Sensitivity.
5
Ramp Toggle
5. Ramp Toggle
Ramping both Drive and Sensitivity up is sometimes required for certain testing applications.  The ramp settings can be set as Off, Low, Med, High.
No ramping is done at all on any of the slider when decreasing the value.
6
Navigation Bands
6. Navigation Bands
Other navigation bands are available when using the Navigation Bar.   Click on each band to reveal the associated band content.
